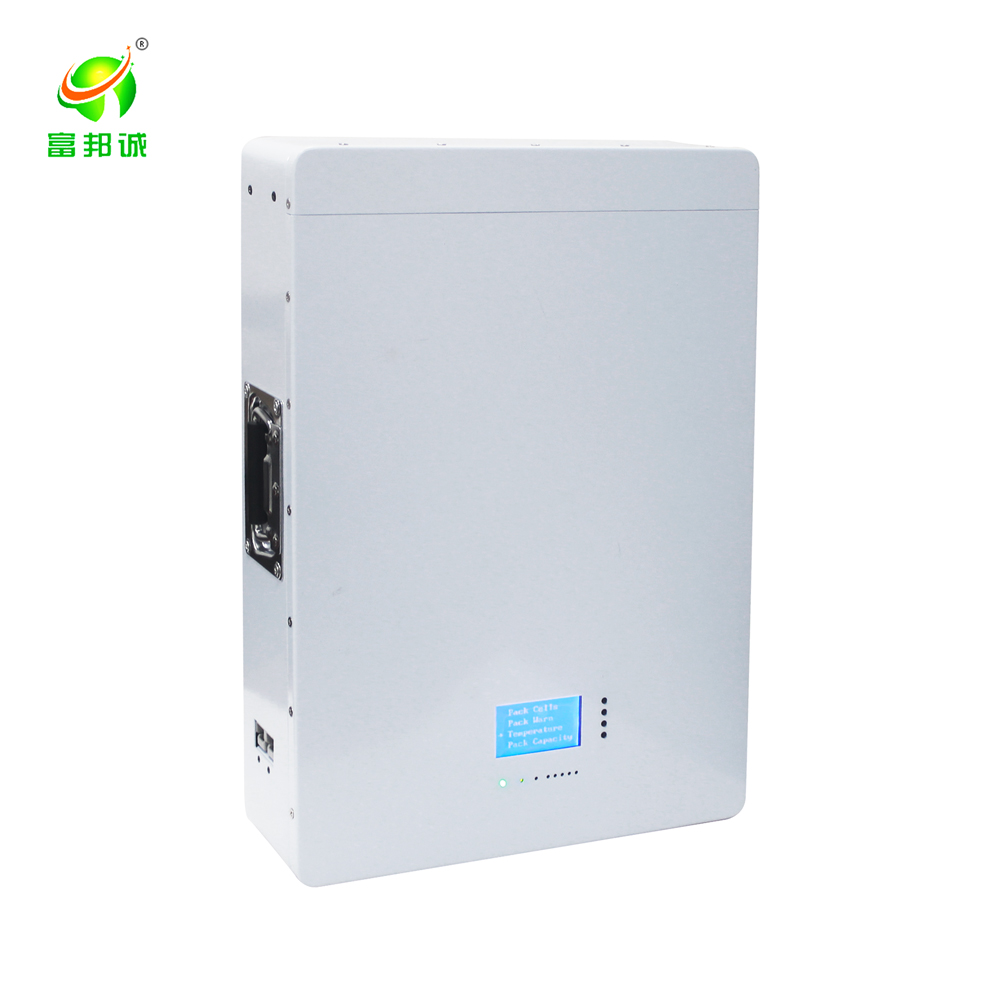

Wall Mount 48V 120AH Lithium Battery Home Solar PV Energy Storage Battery

Ask Lasest Price
Brand Name :	FBFUBANG INT'L
Model Number :	FBC-HSO2
Supply Ability :	3000 units/month
Price :	Contact us
Certification :	ISO9001:2005,UN38.3/TUV/MSDS
Delivery Time :	7-45days
Payment Terms :	T/T, L/C, Western Union

Add to Cart

Product Details
Company Profile

Wall Mount 48V 120AH Lithium Battery Home Solar PV Energy Storage Battery

Customizable 48V battery storage system Wall Mount home solar PV 48V 120AH storage system batteries

Nominal Voltage:			48V (16S1P)
Nominal Capacity:			100Ah
Battery Type:			16S1P Lifepo4 3.2v 100ah Grade A Battery cell
Weight:			≤45Kg each battery
Internal Resistance:			≤120mΩ
End of charge Voltage:			58.4V
Connector			bolt screw or M8 or anderson
End of charge Current:			100mA
Displacy			LCD display (voltage , capacity, and watts etc)
End of discharge Voltage:			36.8V
Charge Method:			0.2C(0.5A) CC/CV
Max.Continuous charge current:			100A
Nominal Discharge Current:			100A bms-200A bms ( depend on your inverter)
Max. Pluse Discharge Current:			150A/10S for 100A bms -300A/10S for 200A bms
Operating Temp.:			Charge: 0~45℃
			Discharge: -10~55℃
Storage Temp.(60-80% SOC Storage):			-10~45℃
Cycle Life:			more than 6000 times at 90% dod
BMS protection:			Over-charge,over-discharge,over-current,Short-circut

Delivery time : Normally delivery within 7-20days, but can arrange in advance if order confirm or priduce faster according to quanity or other reason.

Payment:
1.We accept T/T , PAYPAL , Western Union, Cash and so on. & Trade
assurance order
2. Payment: 30% before mass production;70% balance will be paid
before shipment or after bill of copy
3. FOB , EXW and CIF all are available
4. Samples can accept Paypal
5. If you place the Trade Assurance order on Alibaba,we also can
accept credit card(VISA,Master Card),e-checking.

Shipping way:

DHL, UPS, Fedex, Special Line, Sea shipping, Customer own forwarder

Product Description

Wall Mount 48V 120AH Lithium Battery Home Solar PV Energy Storage Battery

Product parameter
Specification	8S1P-25.36V-120AH
Nominal Voltage	48V
Capacity	120AH
Charge current	50A
Discharge current	100A
Physical dimension	L:540W:390H:130(mm)
Weight	34KG
Cycle life	5000
Cooling method	Self Cooling
Charging temperature	0~45℃
Discharge temperature	-20~60℃
Support inverter brand	Goodwe/Growat/Victorn/LXP/Sofar/Deye/Sematec/SREN/TBB/SMA
In series and parallel	Support
