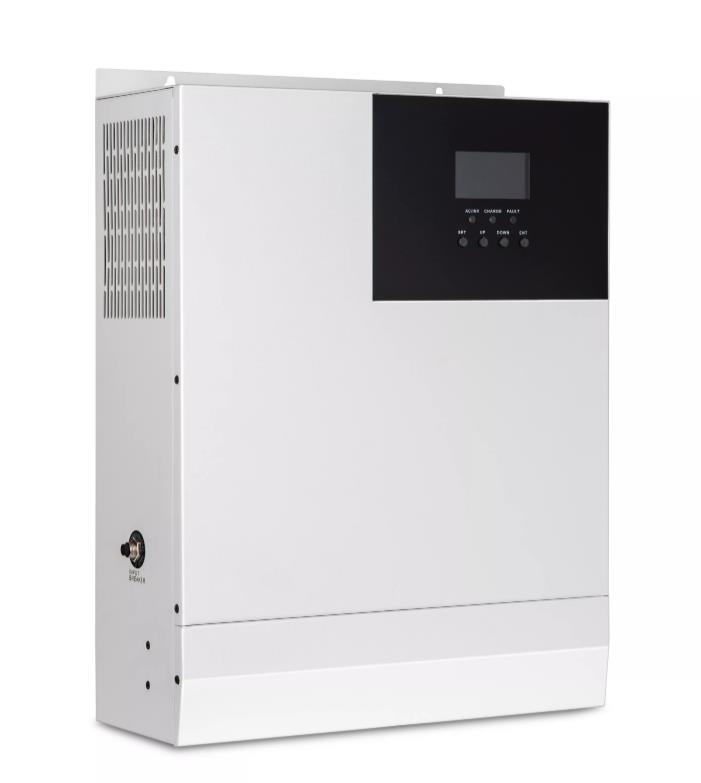

5000W 48V Hybrid Inversor Built-in 80A MPPT Solar Charger 5000W 48V
Hybrid Inversor Built-in 80A MPPT Solar Charger 110-120Vac
Introduction:
1,HF series is a new hybrid solar charge inverter, which integrates
solar energy storage &means charging energy storage and AC sine
wave output. Thanks to DSP control and advanced control algorithm,
it has high response speed, high reliability and high
industrialstandard. Four charging modes are optional,i.e. Only
Solar, Mains Priority, Solar Priority and Mains & Solar hybrid
charging; and two output modes are available,i.e. Inverter and
Mains, to meet different application requirements. The solar
charging module applies the latest optimized MPPT technology to
quickly track the maximum power point of the PV array in any
environment and obtain the maximum energy of the solar panel in
real time.
2,Through a state of the art control algorithm, the AC-DC charging
module realizes fully digitalvoltage and current double closed loop
control, with high control precision in a small volume.
3,Wide AC voltage input range and complete input/output protections
are designed for stable and reliable battery charging and
protection.
4,Based on full-digital intelligent design, the DC-AC inverter
module employs advanced SPWM technology and outputs pure sine wave
to convert DC into AC. It is ideal for AC loads such as household
appliances, power tools, industrial equipment, and electronic audio
and video equipment. The product comes with a segment LCD display
design whichlallows real-time display of the operating data and
status of the system. Comprehensive electronic protections keep the
entire system safer and more stable.
Feature:
1.Full digital voltage and current double closed loop control,
advanced SPWM technology,
output of pure sine wave.
2.Two output modes: mains bypass and inverter output; uninterrupted
power supply.
3. Available in 4 charging modes: Only Solar, Utility Priority, PV
Priority, Utility & Solar hybrid
charging.
4. Advanced MPPT technology with an efficiency of 99.9%.
5.Designed with a LCD screen and 3 LED indicators for dynamic
display of system data and
operating status.
6. Manual ON/OFF switch controlling AC output.
7.Power saving mode available to reduce empty load loss.
8. Intelligent variable speed fan to efficiently dissipate heat and
extend system life.
9. Lithium battery activation by PV solar or mains, allowing access
of lead-acid battery and
lithium battery.
10.Complete protections, including short circuit protection, over
voltage and under voltage
protection, overload protection, reverse protection, etc.
| Model | HF4835U60-H | HF4850U80-H |
| AC mode | |
| Rated input voltage | 110Vac/120Vac |
| Input voltage range | (90Vac-140Vac) ±2% |
| Frequency | 50Hz/ 60Hz (auto-sensing) |
| Frequency Range | 47±0.3Hz-55±0.3Hz (50Hz)/57±0.3Hz-65±0.3Hz (60Hz); |
| Overload/short circuit protection | Breaker |
| Efficiency | >95% |
| Conversion time (bypass and inverter) | 10ms (Typical value) |
| AC reverse protection | Yes |
| Maximum bypass overload current | 40A | 63A |
| Inverting mode | |
| Output voltage waveform | Pure sine wave |
| Rated output power(VA) | 3500(2900/3000/3200) | 5000(4100/4300/4500) |
| Rated output power(W) | 3500(2900/3000/3200) | 5000(4100/4300/4500) |
| Power factor | 1 |
| Rated output voltage (Vac) | 120Vac(100/105/110Vac settable) |
| Output voltage error | ±5% |
| Output frequency range (Hz) | 50Hz ± 0.3Hz/60Hz ± 0.3Hz |
| Efficiency | >90% |
| Overload protection | (102%<load<110%) ±10%: reporting error and turn off the
output after 5 minutes; (110%<load<125%) ±10%: reporting
error and turn off the output after 10 seconds;
Load>125% ±10%: reporting error and turn off the output after 5
seconds; |
| Peak power | 7000VA | 10000VA |
| Loaded motor capacity | 2HP | 4HP |
| Output short-circuit protection | Breaker |
| Specification of bypass breaker | 40A | 63A |
| Rated battery input voltage | 48V (minimum start voltage 44V) |
| Battery voltage range | 40.0Vdc~60Vdc ± 0.6Vdc (undervoltage alarm/turnoff
voltage/overvoltage alarm/overvoltage restoration…settable LCD
screen) |
| Power saving mode | Load ≤50W |
| AC charge | |
| Battery type | Lead acid or lithium battery |
| Maximum charge current | 40A |
| Charge current error | ± 5Adc |
| Charge voltage range | 40~60Vdc |
| Short-circuit protection | Breaker and blown fuse |
| Breaker specification | 40A | 63A |
| Overcharge protection | Turn off charge after 1min alarm |
| Solar charge | |
| Maximum PV opencircuit voltage | 450Vdc | 500Vdc |
| PV operation voltage range | 120-450Vdc | 120-500Vdc |
| MPPT voltage range | 120-430Vdc | 120-450Vdc |
| Battery voltage range | 40-60Vdc |
| Maximum output power | 4200W | 5000W |
| Charge current range of solar energy (settable) | 0-60A | 0-80A |
| Charge short-circuit protection | Blown fuse |
| Wiring protection | Inverse wiring protection |
| Authentication specification | |
| Specification authentication | CE(IEC 62109-1)/CETL(UL 1741/CSA C22.2 NO.107.1) |
| EMC authentication grade | EN61000 |
| Operation temperature range | -15°C to 55°C |
| Storage temperature range | -25°C ~ 60°C |
| Humidity range | 5% to 95% (Conformal coating protection) |
| Noise | ≤60dB |
| Thermal dissipation | Forced cooling with adjustable air speed |
| Communication interface | USB/RS485 (WiFi/GPRS)/dry node control |
| Dimension (L*W*D) | 426mm*322mm*126mm |
| Weight (kg) | 10.9 | 11.6 |
