3kw 4kw All In One Solar System 5KW 6KW 8KW 10kw On Grid Solar System For Home

Ask Lasest Price
Brand Name :	FBC
Model Number :	FBC-HSO1
Certification :	CE/RoHS/UN38.3/MSDS/ISO
Supply Ability :	10000 units/month
Price :	$0.46/watts 5000-9999 watts

Add to Cart

Product Details
Company Profile

3kw 4kw All In One Solar System 5KW 6KW 8KW 10kw On Grid Solar System For Home

Household solar energy system 3KW 4KW 5KW 6KW 8KW 10KW off grid on grid solar system solar panel system for home

Product Introduce:

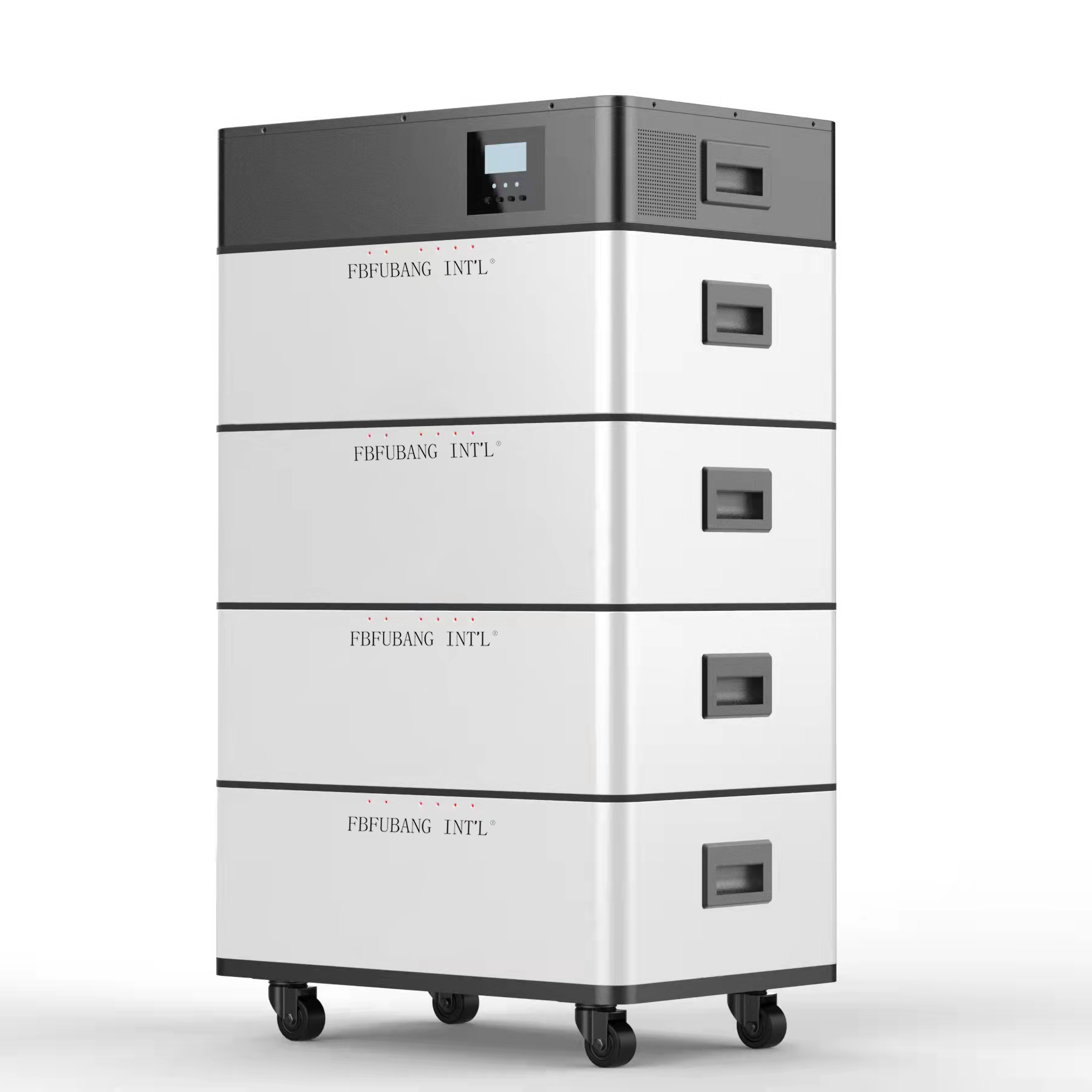

All in one stack battery is a 48VDC battery storage system based on lithium iron phosphate battery, which is one of the new energy storage products developed and produced by FBC.

It can be used to support reliable power for various types of equipment and systems. It is especially suitable for those application scenes which required high power output, limited installation space,

restricted load-bearing and long cycle life.

Features:

1. Modular design gives highest flexibility
2. LFP cell inside enable longest life and highest safety
3. Quick connector to save installation time
4. Furniture like design suits both indoor and outdoor installation
5. Proven BMS with widest compatibilities with inverters

3kw 4kw All In One Solar System 5KW 6KW 8KW 10kw On Grid Solar System For Home

Product number	FBC-HS01
Battery(single)
Product specification	16S1P*51.2V-100AH
Nominal Voltage	51.2V
Nominal Capacity	100AH
Discharge Current	100A
Charging Current	50A
Battery Size	600405195mm
Battery Weight	56KG
Service Life	6000
Cooling Mode	Self Cooling
Relative Temperature	20%~95%RH
Degree Of Protection	IP20
Service Life	＞15years @ 25℃
Charging Temperature	0~45℃
Discharge Temperature	-20~60℃
Storage Temperature	-10~35℃,Less than 6 months
Communiction Mode	RS485,RS232,CAN
Inverter
Rated Power	4KW
Capable of Stariing Elctiric Motor	4HP
Waveform	pure sine wave/same as input(bypass mode)
Output Voltage Range and Error	120V/240VAC(+/--10%RMS)
Output frequency	50Hz/60Hz+/-0.3Hz
Conversion time	10ms(MAX)
Solar Charging
Maximum PV Charge Current	80A
Maximum PV Array Power	5000W
MPPT Range @ Operating Voltage(VDC)	60~140VDC
Maximum PV open circuit voltage	150VDC
Maximum Efficiency	＞98%
Power Consumption	＜150W
AC Input
Voltage	230VAC
Selectable Voltage Range	184~272VAC(UPS):154~272VAC(ARL)
Frequency Range	50Hz/60Hz(Auto Sensing)
AC charger
Max Charging Current	40A
Overcharge protection S.D	62V
Other
Use ambient temperature	0~45℃
